Antronix MVRA502BACPEZ MoCA Enhanced VoIP Residential Amplifier | Product Catalog | TVC Canada

ANTRONIX MVRA502BACPEZ MOCA ENHANCED VOIP RESIDENTIAL AMPLIFIER

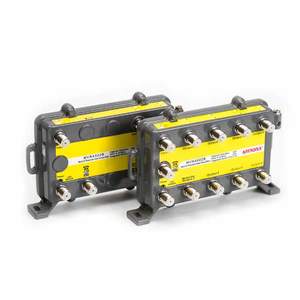

Antronix MVRA502BACPEZ MoCA Enhanced VoIP Residential Amplifier

The MVRA502BACPEZ  MoCA Enhanced VoIP Residential Amplifier from Antronix has enhanced performance in the MoCA band to optimize data rates for video sharing, multi-room DVR service, video conferencing and other MoCA applications.

The MVRA502B/AC has four amplified output ports and a reliable passive VoIP port, which maintains RF integrity even when power is disrupted to the amplifier. The passive VoIP port provides a MoCA path to the amplified output ports to ensure full MoCA compatibility.

This amplifier can be mounted in an all-ports-down configuration which allows for ease of installation in a NID enclosure. The integrated MoCA point of entry filter prevents MoCA signals from interfering with an adjacent subscriber.

Additional Features and Benefits:

  • MoCA Enhanced - Optimized RF performance in the MoCA band ensures maximum data rates for MoCA enabled devices. Integrated MoCA point of entry filter prevents MoCA signals from interfering with adjacent subscribers.
  • Passive VoIP Port for Critical Voice Service - The passive VoIP port provides continuous service when power is disrupted to maintain critical voice service and supports MoCA band communications to the amplified output ports.
  • CamPort® Auto-Seizing F-port - Patented auto-seizing brass F-port features a “Cam Activated Mechanism” to provide full contact pressure (> 2000 grams) on the center conductor for maximum reliability.
  • Self-Terminating Internal Switch - An internal self-terminating switch provides excellent bi-directional RF performance between the input port and VoIP port even when power is disrupted.
  • Unity Gain Forward and Return - Active gain in the forward and return band provides unity gain in both directions for ease of installation.
  • 6 kV Surge Protection - Unique 6 kV surge protection without the use of arc gaps which may cause high impulse noise during discharge.
  • Powder Coated Aluminum Housing - Provides the most corrosion resistant protection against salt fog and rust.
  • Optional Power Inserter for Remote Powering - The amplifier can be powered remotely with a dual isolation compartment power inserter for high AC to RF isolation to prevent ingress.
  • PTC Short-Circuit Protected UL Listed Adaptor - Self-resetting circuit provides safe protection against short-circuits to minimize maintenance costs.

Ordering Information

TVC Part #Manufacturer Part #DescriptionCase PackInner Pack
MVRA502BACPEZMVRA502B/AC PEZAMPLIFIER, 4 PORT+1 VOIP, 42/54MHZ, MOCA, UNITY GAIN F/R201
ARPI2000BARPI-2000BPOWER INSERTER, CW SURGE5025
