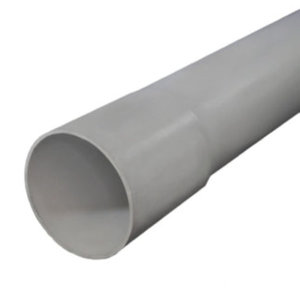

POWER & COMMUNICATIONS DUCT TYPE EB-20

Power & Communications Duct Type EB-20Meets NEMA Standard TC-6 & 8 EB-20/ASTM F-512

Nonmetallic Power & Communications Duct Type EB is manufactured from an exclusive high modulus C-600 compound, developed especially for power and communications applications, and is designed for use in concrete encased installations. Type EB is rated for 90°C cable.

ETL Listed

See Ordering Matrix to configure Part Numbers.

Ordering Information

Nom. SizeStd. Crate Qty. 10'Std. Crate Qty. 20'Approx Wt. Per 100'O.D.Min. Wall
2 -2,800 362.375.060
45701,140984.500.082
6 260520212 6.625.125
53807601485.563.103
32,000593.500.061

*Min. wall thickness relates to 500,000 modulus. Note: One belled end per piece of conduit.
