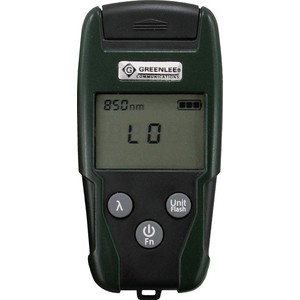

Tempo Micro OPM Optical Power Meter

The Micro OPM is an Optical Power Meter (OPM) and Visual Fault Locator (VFL) combination instrument that provides the fiber Premise Technician the tools they need to troubleshoot FTT(x) and Point to Point networks. The Micro OPM is compatible with both single-mode and multi-mode networks. The OPM uses an InGaAs diode and is calibrated at 850, 1300, 1310, 1490, 1550 and 1625nm. It features tone detect at 270Hz, 1kHz and 2kHz for measuring and identifying all common wavelengths. The OPM is available in standard Telco (+6 to -70dBm) and MSO (+26 to -50dBm) power ranges. The VFL uses a 650nm 1mW laser that can be used to safely detect Macro-bends, contaminated or faulty connectors and broken or damaged fibers. The white LED can be used to aid the technician while working in dimly lit locations.


  • Measure optical power
  • Tone and probe to positively identify fibers
  • Measure insertion loss
  • Locate Macrobends
  • Identify contaminated or faulty connectors
  • Find damaged or broken fibers


  • Simple user interface
  • Fast, accurate power measurements
  • Safe optical power levels for effective visual fault locating
  • Integrated white LED for viewing in dimly lit locations with integrated SOS
  • Lanyard for convenient handing
