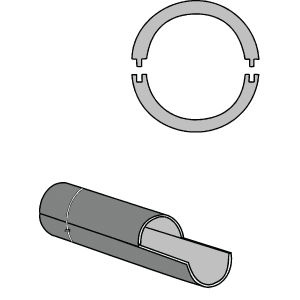

Split Duct

Split Duct is the fast and easy way to repair broken ductwork without the costly cutting and resplicing of your conductors. The unique tongue-and-groove design provides a strong, rigid solution for duct repair situations.

The interlocking design allows the split duct sections to be staggered and butted together. Joints may be sealed with tape and reinforced with plastic or metallic straps to produce a rigid, stable unit.

Manufactured from a compound designed specifically for power and telecommunications applications. Split Duct exhibits superior impact strength and ultraviolet resistance.

Available in 2” through 6” diameters, this product line also contains couplings and sweeps necessary to complete the system.

See Order Matrix to configure Part Numbers

Ordering Information

TypeDescriptionStd. Ctn. Qty.Std. Ctn. Wt. (lbs)O.D.
Schedule 402” Schedule 40 Split Duct 7005642.375
Schedule 402-1/2” Schedule 40 Split Duct460572 2.875
Schedule 403” Schedule 40 Split Duct5008573.500
Schedule 404” Schedule 40 Split Duct2907014.500
Schedule 405” Schedule 40 Split Duct2307515.563
Schedule 406” Schedule 40 Split Duct1305486.625
Schedule 802” Schedule 80 Split Duct7007492.375
Schedule 804” Schedule 80 Split Duct2909224.500
Schedule 403-1/2” Schedule 40 Split Duct 2905694.000
C Duct4” C Duct Split Duct3206144.350
