SMOUV FIBER OPTIC FUSION SPLICE PROTECTOR SLEEVES

SMOUV Fiber Optic Fusion Splice Protector Sleeves

SMOUV sleeves for fiber-optic fusion splices can be used to rebuild the primary coating of fiber to provide protection at the fusion joint area.

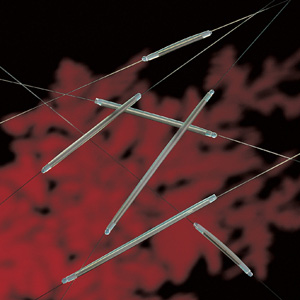

The SMOUV sleeve consists of a rod for reinforcing the splice, a low-temperature hot-melt adhesive to encapsulate and strengthen the splice, and a clear, heat-shrinkable tube.

  • Heat-shrinkable tube with hot-melt adhesive
  • Different types assigned for single fiber and ribbon fiber
  • Guaranteed to be compatible with the full range of Raychem fiber management systems and organizers



Ordering Information

Item #Fiber TypeUnit of MeasureQty. per Pack
SMOUV-1120-02-USSinglepack100
SMOUV-1120-R2/12-US*Ribbonpack50

* Ceramic Rod
